ADDITIONAL COLORS, TRIM LEVELS, SUSPENSION SYSTEMS & ACCESSORIES ARE AVAILABLE BY SPECIAL ORDER. CONTACT OUR SALES TEAM FOR MORE INFORMATION.
The new FAST SF Next Generation Headborne System is Ops-Core's lightest weight ballistic helmet system yet. This weight reduction is enabled by the introduction of three new subsystems: the next-generation FAST SF ballistic shell, the LockDown™ Liner, and the Head-Loc® Flex chinstrap.
The next generation FAST SF helmet system combines reduced weight, enhanced comfort and uncompromising protection for those who demand the absolute best. As the exclusive provider of USSOCOM's FTHS helmet system, we deliver the performance and reliability trusted by the world's most elite forces.
FEATURES
- Ballistic protection from 9mm rounds (1200f/s) with a shell weight of just 1.23 lbs/557 grams (Size L) the FAST SF offers the same level of ballistic protection as its predecessor but with a 10% reduction in overall system weight.
- LockDown Liner System incorporates a user-customizable suspension system with multiple strategically placed pads, encouraging airflow. The LockDown Comfort Liner, featuring moisture-wicking fabric and reticulated foam, offers adaptable density for diverse head shapes and comfortably supports heavy VAS and NVG systems.
- LockDown conformable nape pad and cable Occ-Dial® offer enhanced stability, securing a larger contact area on the rear of the user's head, adapting to individual contours for an improved fit compared to other, more rigid systems.
- LockDown cable system enables an interference-free fit with headband communication systems.
- Redesigned Head-Loc Flex retention system introduces a unique convertible chin cup that can be worn either over or under the chin, eliminating the need for a mask extender with the 02 and CBRN kit for most users.
- PowerPath™ ARC Rail system provides a lightweight mounting solution for Ops-Core headborne systems and features a unique, behind the rail channel for the safe routing of NVG cables.
- Lightweight Modular Bungee Shroud (MBS) reduces snag hazards and features carabiner clips to improve NVG retention and stability while reducing interference with other rail-mounted accessories.
- External VELCRO® Brand loop kit allows for quick and easy attachment and detachment of headborne accessories.
SPECIFICATIONS

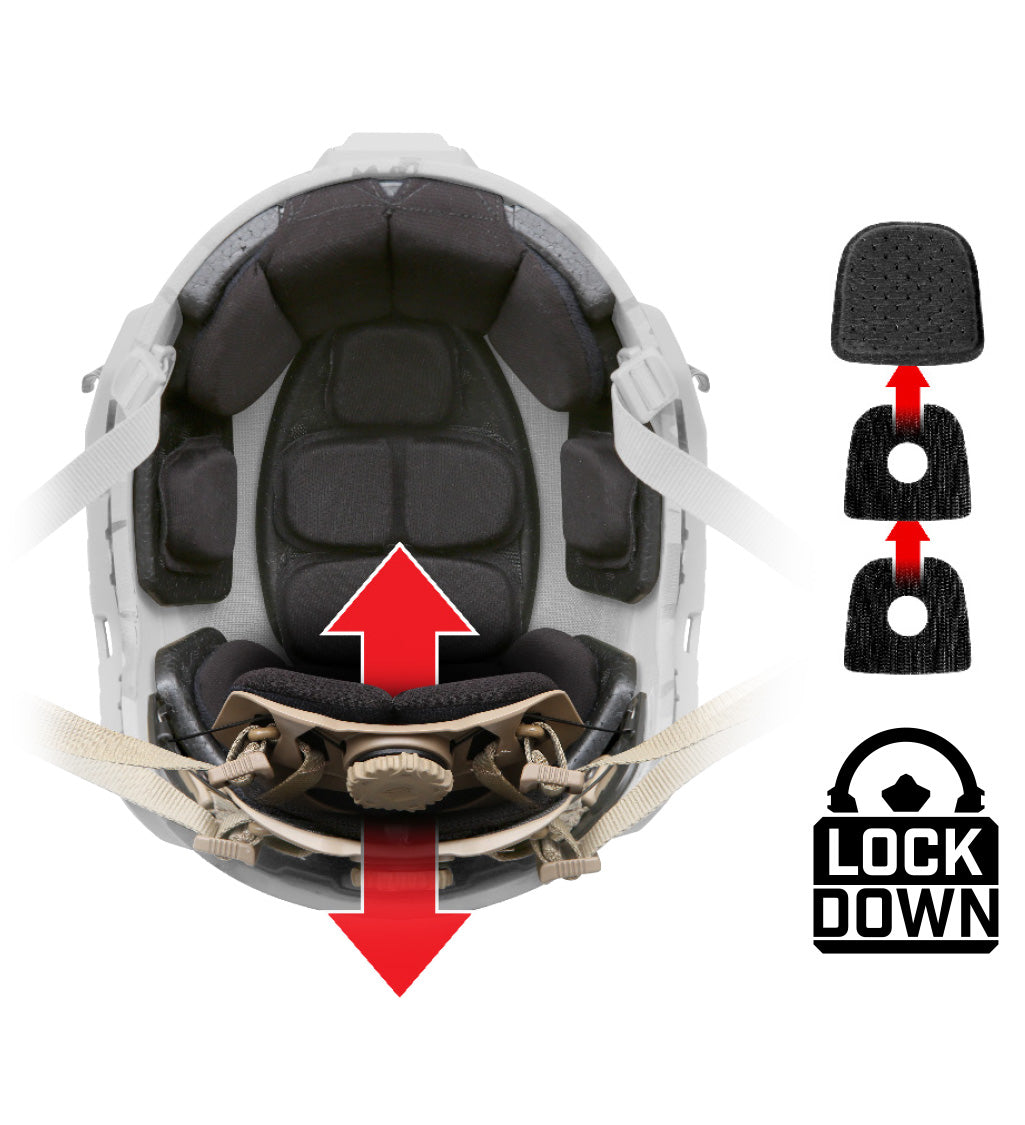

The LockDown Liner System is a universal suspension solution that enhances comfort, airflow, and stability for heavy VAS and NVG setups. Featuring LockDown Fit Shims and a Cable Occ-Dial® with a conformal nape pad, it ensures a secure, customizable fit for any head shape, delivering unmatched performance in demanding conditions.

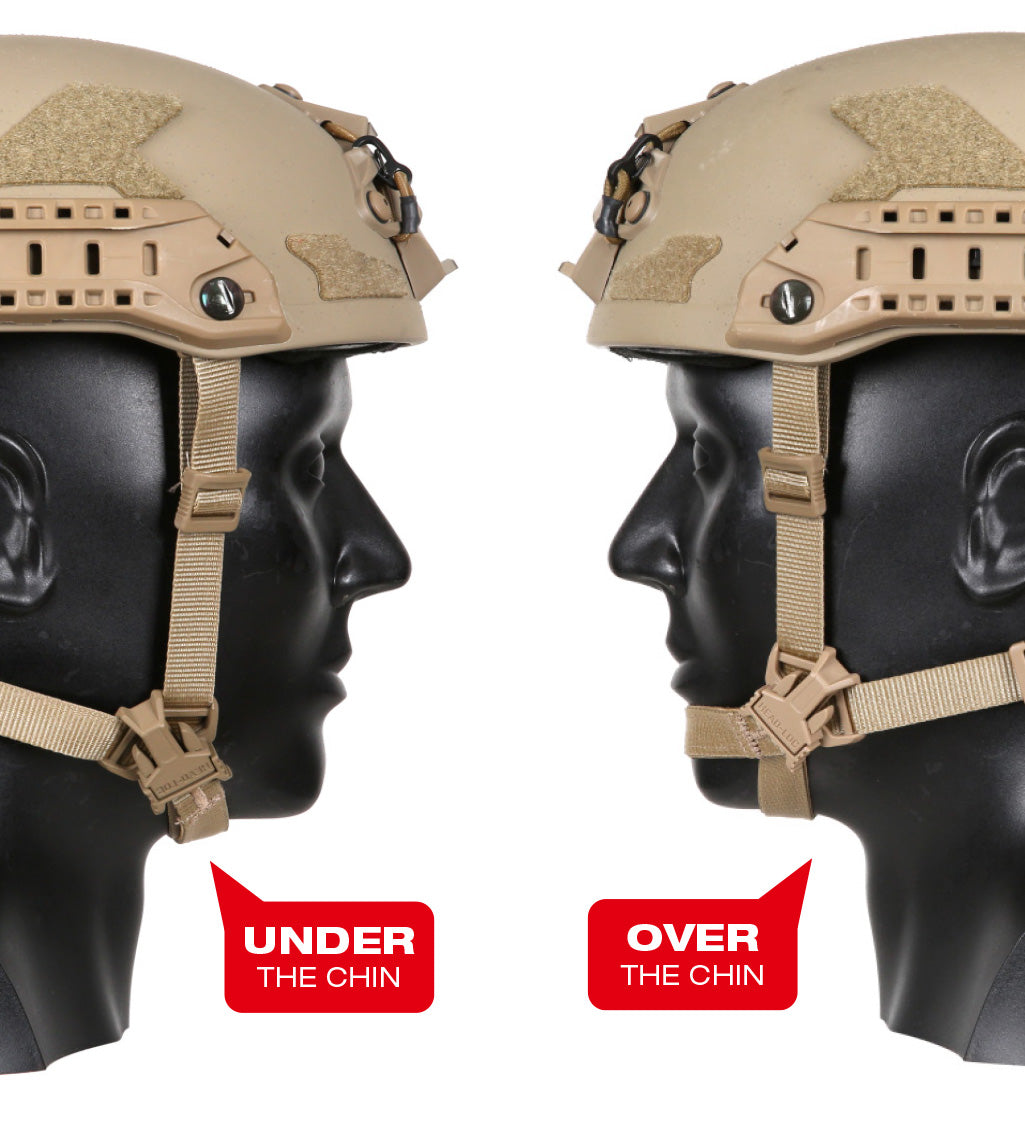

The Head-Loc FLEX retention system - featuring a convertible chin cup that adapts to your needs. Wear it under the chin for comfort or over the chin for added stability, with adjustable positioning to ensure a perfect, personalized fir for every user.
- Performance Specification: Modified and Abbreviated Family of Tactical Headborne Systems, dated June 30th 2017; Ops-Core Performance Specification FAST SF PS-1608
- NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ @ 1,400 ft/s) Threat
-
Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg),
Side-Side = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) lbs. -
Environmental Resistance: Temperature storage and operating at ambient, cold -60° F (-51° C), and hot +160° F (71° C), temperature shock, flame resistance, altitude,
seawater, field agent resistance, weatherometer - Blunt Impact Protection: 150 g’s maximum at 10 ft/s. Maximum allowable dent 0.023
- Shell Construction: Two-stage non-slit
- Shell Thickness: 0.220” (5.58 mm)
- Shell Geometry (Curvature): FAST
- Cut Style (Side Protection): High Cut

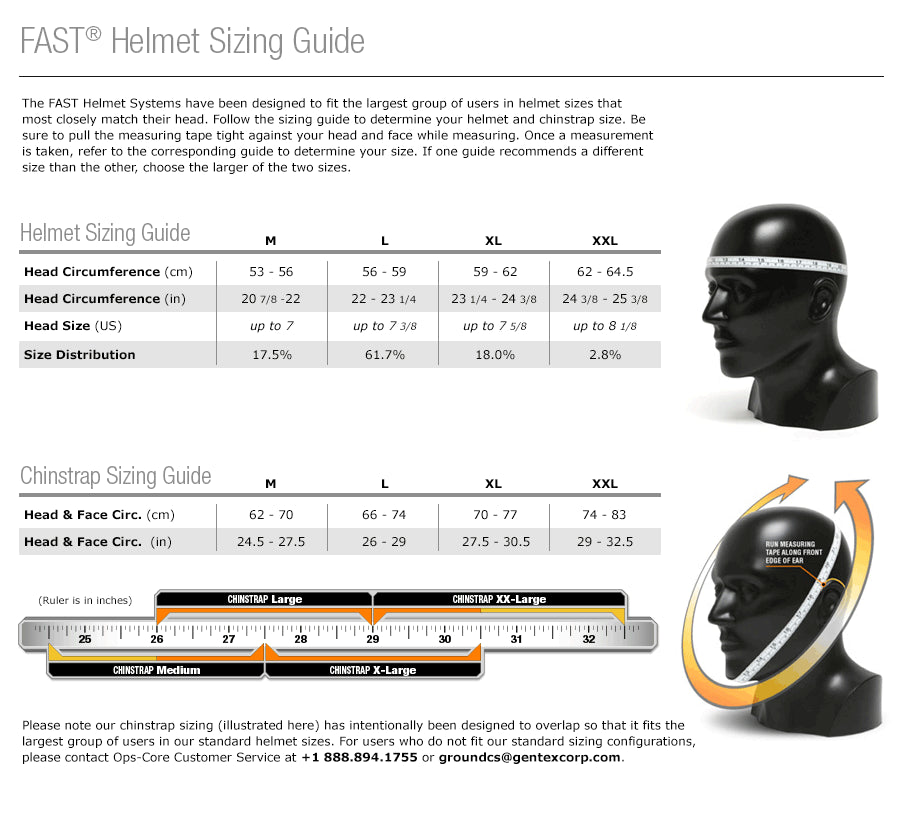

- Available Sizes: Medium (M), Large (L), X-Large (XL), XX-Large (XXL)

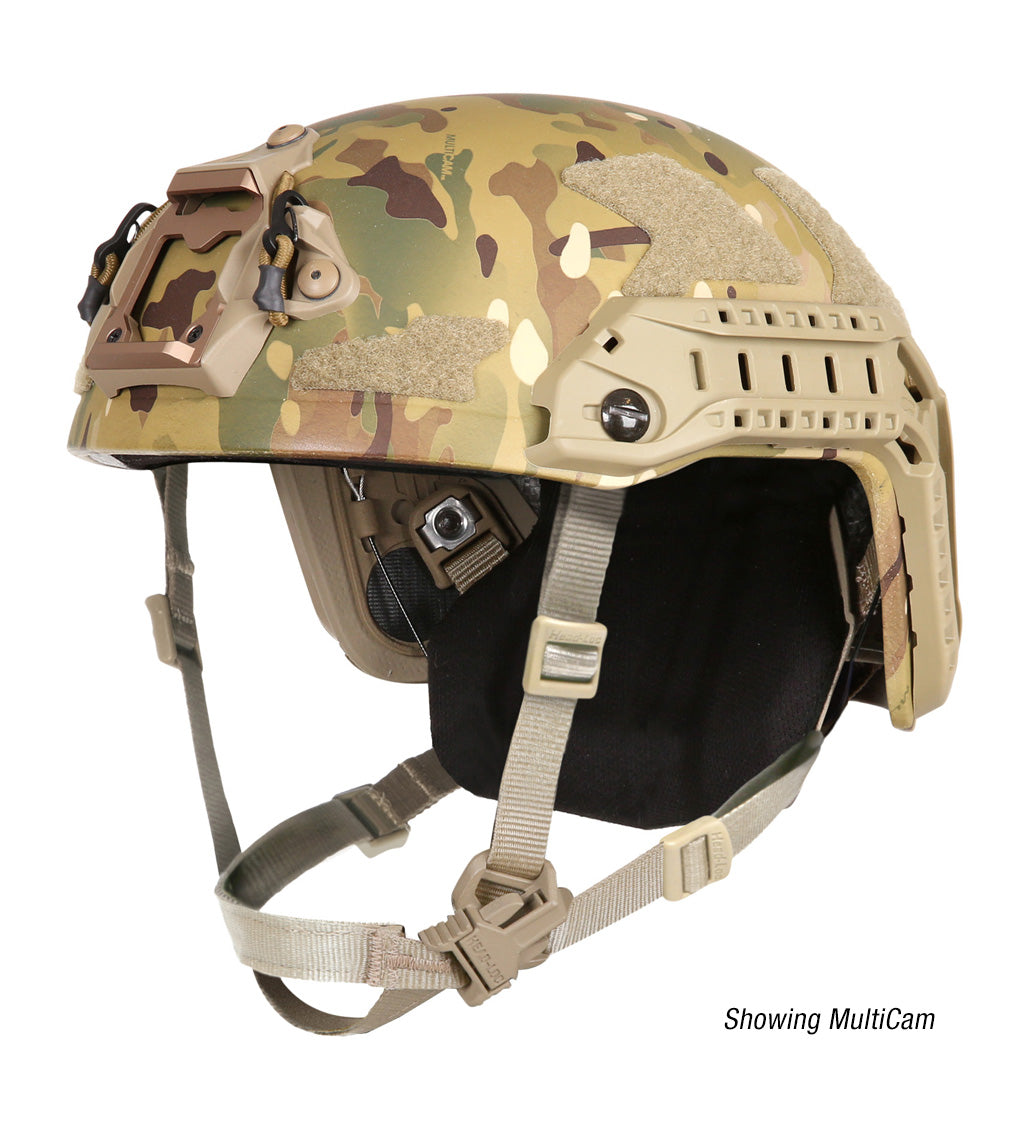

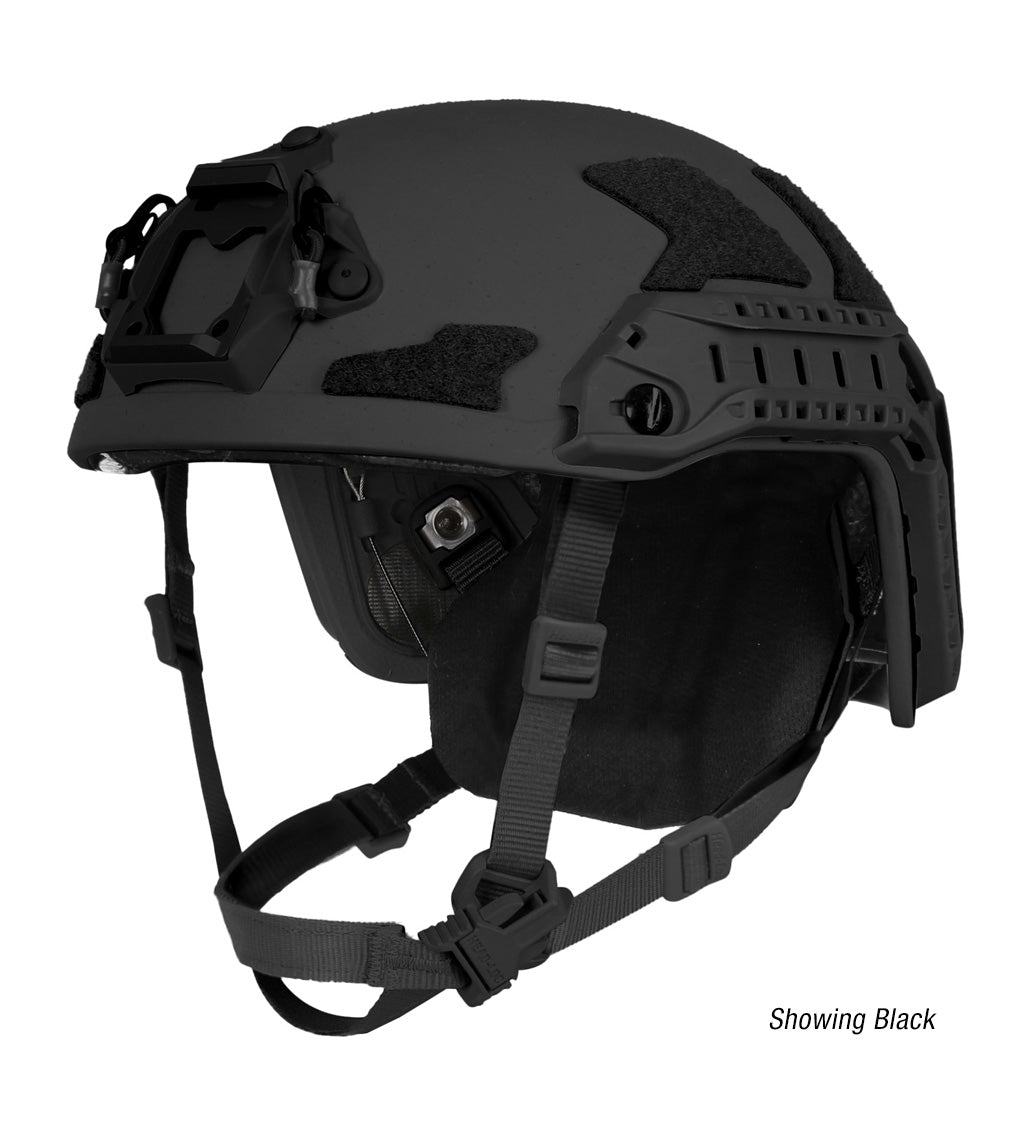

- Available Colors: Tan 499, Black, Multicam
COVERAGE & WEIGHT
| Size | Protective Area of Coverage | Shell Weight |
| Medium | 137 in² (884 cm²) | 1.12 lbs (508 g) |
| Large | 148 in² (955 cm²) | 1.23 lbs (557 g) |
| X-Large | 163 in² (1052 cm²) | 1.32 lbs (597 g) |
| XX-Large | 171 in² (1103 cm²) | 1.34 lbs (610 g) |
